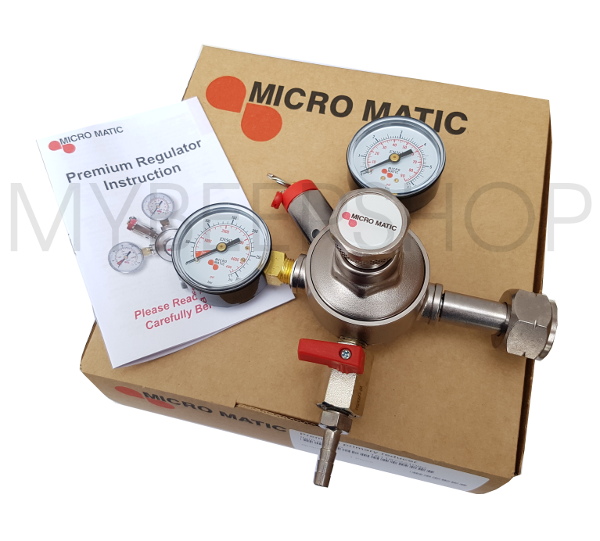

You are looking at a brand new top of the range MICROMATIC dual gauge CO2 gas regulator!!
This
is the regulator that is used in pubs and bars. If you want top of the
range, then this is it. This quality regulator is made in Denmark, and
each one has it's own identification number for traceability.
This top of the range MICROMATIC side-entry regulator has dual gauges, showing the pressure level
inside the cylinder, and also the regulated pressure of the outlet. It
is very easy to install and adjust.
Perfect for your home beer brewing, pub or bar.
Use this with our one way check valve to prevent beer/water can
flowing in reverse into the regulator causing irreparable damage. This is
a cheap form of insurance that will save your regulator in the case
that back-flow does occur. The check-valve is fitted
in-line between the regulator and your equipment.
Features:
- High performance
- Accurate pressure control
- Designed to be non-serviceable
- Integrated pressure relief valve
- Stainless steel valve seat
- Zn/Ni plated brass housings
- SK approved
- Individually numbered for traceability
- Tamper evident cap breaks to access adjust screw
- Tamper evident ring between housings
Benefits:
- High capacity CO 2 flow 180 L/min peak 100 L/min continuous
- Stable CO 2 pressure from full to empty cylinder
- Double inlet filter (200 microns / 100 microns)
- Venting function – easy adjustment
- Maintenance free
- Modern production facilities
- Single product identity (number)
- Comply with EU Directive 97/23/EF
- Manufacturing in accordance with ISO 9001 quality control system
Specification
Material:
-body: Brass Zn/Ni plated
-valve seat: Stainless steel
-connections: Brass Zn/Ni plated
-brackets: Stainless steel
Inlet connections:
- CO 2 : W 21.8 x 1/14
Outlet connection:
-outside: 1/2“ – 5/8“ – 3/4“ BSP
-inside: 1/4“ NPT
Inlet pressure: 60 bar (CO 2 ) and 200-230 bar
Working pressure: 0-4 bar
Capacity: 100 l/min maximum
Media: CO 2 , N 2 and mixed gases
